  Nothing About Us Without Us

   Developing Innovative Technologies
            For, By and With Disabled Persons

    David Werner

037

CHAPTER 2

Seats with Changing Positions
to Meet Jazmín's Different Needs


Need for Seating that Adjusts to Help a Child Gain Greater Body Control

Especially for the child whose body is floppy and has little head control, it is important that seating be designed so as to help the child gain more trunk (body) and head control. Before designing the seat, it is a good idea to check how much head control and trunk control the child has, by holding him in a sitting position, It is often best for the mother or family member to do this, and it is essential that she understand the principles involved.

Checking head control.

To check head control, sit the child on your lap or on a firm object. With your hands, provide just enough shoulder or trunk support to keep the child sitting upright. With your fingertips, position the head straight up. Then gently lessen the head support to see if the child can hold (or partly hold) his head up, even for a moment. Catch the child's head softly with your fingertips when it begins to fall.

Checking trunk control.

To check trunk (body) control, sit the child firmly and hold his body just under his arms. Gradually move your hands lower on his body to find out how low the support can be for him to keep in an upright position. If he can keep his balance and remain sitting upright when you hold him low at the hips, he is developing fairly good trunk control. This boy's mother was surprised at how much trunk control her son had.

These two activities, used here for evaluation, can also be used to improve a child's head control, trunk control, and balance. Do them several times a day. As a general rule:

Use the least amount of support needed to help the child do the most she can for herself.

For special seating, this same principle applies. It is often helpful if the seating is adjustable, allowing the child to sit in positions for stimulation as well as for relaxation.

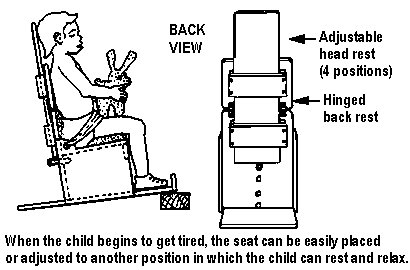

In this position the seat encourages the child to use her muscles and to develop control and balance. When the child begins to get tired, the seat can be easily placed or adjusted to another position in which the child can rest and relax.



038

For Jazmín - A Seat That Changes Position

JAZMÍN was 3 years old when her mother first brought her to PROJIMO. Her brain had been damaged at birth. She still had almost no head control. When her mother tried to sit her up, her head fell forward and her body flopped to one side. She had spent most of her life lying in a crib. At PROJIMO, Mari (one of the coordinators of the program) showed Jazmín's mother several activities that she could do to help Jazmín gain more head control. These included the "fingertips at the base of the skull" activity shown on page 37.

Her large head tended to fall forward.

After working with Jazmín's mother to evaluate her daughter's abilities and needs, Mario (a carpenter who is paraplegic) and Mari designed and made a special seat for her. It was basically a plywood box with the seat, the back, and width measured to her size.

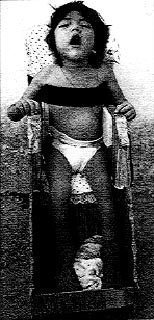

Jazmín's large head tended to fall forward even when she was tilted somewhat back. So Mario made a headrest that angled backward from the seat back. That way, Jazmín could rest her head against the headrest without her head falling forward. But although this let her rest comfortably, it did little to help her gain head control. For this reason a piece of plywood was prepared, with slits of different lengths, so that it could lift the back of the seat to different heights. A soft chest band helped to keep her from slumping forward.

When the seat was tilted more forward, Jazmín had to make more effort to keep her head from falling forward.    When the seat was positioned so it tilted far back, Jazmín could rest without her head falling forward.

Mother talked with her daughter, "Look at the cow, Listen to her bell."

Because the angle of the seat could be adjusted securely in 5 different positions, her mother could experiment, seeking the angle at which Jazmín was barely able to keep her head upright. Over time, this would help her develop head control. As her control improved with the combination of special seating and fingertip exercises, her mother could leave Jazmín sitting longer in the upright position before letting her rest in the back-slanting position. And, little by little, she could tilt the seat further forward, encouraging yet further improvement in head control.

Mari also encouraged Jazmín's mother to talk with her daughter when she did any activity with her. Jazmín's mother learned to move bright colored objects in front of her face, encouraging her to follow them with her eyes and to try to lift her head.

039
Her body and head flopped far over to the right side.

A problem with Jazmín's seat was that her body still tended to flop over to the right, with her head hanging over the side of the seat.

To help Jazmín sit straighter, the team made wedges of layered cardboard and positioned them to hold her hips in place and to center her body. But still, her body and head flopped far over to the right side.

By experimenting with her hands, Mari found that when Jazmín's head was supported gently on the right side, this kept her upper body from flopping over to the right. She thought a head support on the right side would help. But it should be easily removable. Removing it at times might help Jazmín become less dependent on it, and it might encourage her to keep her body and head upright. Eventually, the side-support might not be needed.

Armando made a simple, easily removable, side-of-the-head support by heating a piece of sheet plastic over a flame and bending it as shown below.

For comfort, a foam pad was attached to the part of the headrest that would support her head.   The U in the plastic could be slipped firmly onto the head-rest, over the cushion.

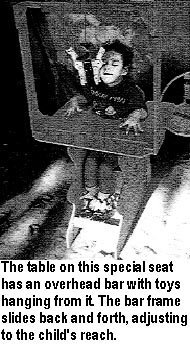

She began to gain better head control. The table on this special seat has an overhead bar with toys hanging from it. The bar frame slides back and forth, adjusting to the child's reach.

With the right side of her head supported in this way, Jazmín could sit much straighter. The thin plastic support was rather flexible, so that when Jazmín pushed her head against it, it would bend a bit. This permitted some head motion. Yet when she stopped pushing, the support would gently move her head to a straighter position.

With the help of head-control exercises and a special seat designed to meet her needs, together with more stimulation by her mother, brothers, and sister, Jazmín began to gain better head control. Once she could hold her head up, she took more notice of action and movements around her.



040
Adjustable-position seating designs similar to the one made for Jazmín have been modified and adapted by PROJIMO to meet the needs of many different children. Here is an example of a seat for a baby named FÁTIMA, who had floppy cerebral palsy and developmental delay.

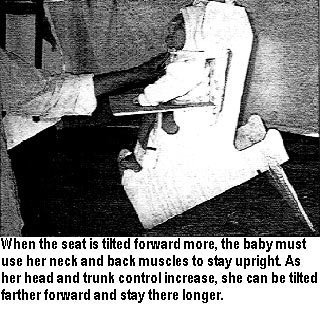

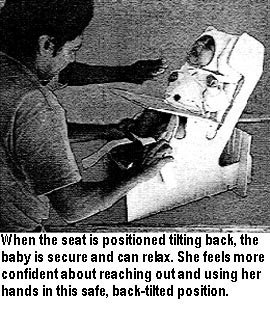

When the seat is positioned tilting back, the baby is secure and can relax. She feels more confident about reaching out and using her hands in this safe, back-tilted position.   When the seat is tilted forward more, the baby must use her neck and back muscles to stay upright. As her head and trunk control increase, she can be tilted farther forward and stay there longer.

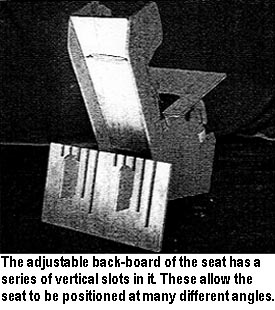

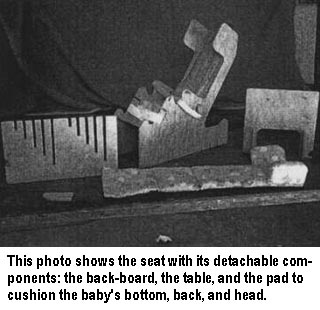

The adjustable back-board of the seat has a series of vertical slots in it. These allow the seat to be positioned at many different angles.   This photo shows the seat with its detachable components: the back-board, the table, and the pad to cushion the baby's bottom, back, and head.

Many of the seats built at PROJIMO include an adjustable overhead bar from which colorful toys, rattles, and bells can be hung. These attract the child's attention and stimulate her to lift her head, reach out, and start to develop hand-eye coordination.

Building a special wooden seat.

The mother of Tinín, a child with cerebral palsy, helps Irma build a special wooden seat for him.

Toys hung from the bar that can be adjusted over the table.

Irma and Tinín's mother attached a bar that can be adjusted over the table. Toys hung from the bar encourage the boy to lift his head and to use his hands. (For more on Tinín see pages 54-55.)
